Sequential Analyses

Code

library(MASS)
library(tidyverse)
library(viridis)
library(brms)
library(emmeans)
library(BayesFactor)
library(tidybayes)

theme_set(theme_minimal())

color_primary <- "#2171b5"
color_secondary <- "#888888"
color_reference <- "gray50"

set.seed(1)

options(brms.backend = "cmdstanr")

This section is about performing sequential analyses.

Bayesian

Two groups

For this scenario we simulate data from two different groups (say a control group and an experimental group).

Code

# Set the simulation parameters
Ms <- c(0, 0.25)
SDs <- 1
n <- 250
labels <- c("control", "experimental")

# Produce the variance-covariance matrix
Sigma <- matrix(
  nrow = length(Ms),
  ncol = length(Ms),
  data = c(
    SDs^2, 0,
    0, SDs^2
  )
)

# Simulate
m <- mvrnorm(n = n, mu = Ms, Sigma = Sigma, empirical = TRUE)

# Prepare data
colnames(m) <- labels

data <- as_tibble(m)

data <- pivot_longer(
  data = data,
  cols = everything(),
  names_to = "condition",
  values_to = "DV"
)

data <- mutate(data, id = 1:n(), .before = condition)

There are different Bayesian ways to analyze this data. One can focus on estimation or on Bayes factors.

Estimation

If estimation is the goal, we run the model (or models) and obtain the posterior distribution of the estimates of interest. Below we run subsequent models with each model using more of the data.

Code

ns <- c(10, 20, 30, 40, 50, 75, 100, 150, 200, 250)
results <- tibble()

for (i in 1:length(ns)) {
  # Get the sample size
  n <- ns[i]

  # Draw a sample of size n
  sample <- slice_head(data, n = n)

  # If this is the first iteration, run the full brms model
  # Else update the model
  if (i == 1) {
    model <- brm(
      formula = DV ~ 0 + Intercept + condition,
      data = sample,
      family = gaussian(),
      prior = c(
        set_prior(coef = "Intercept", prior = "normal(0, 1)"),
        set_prior(class = "b", prior = "normal(0, 1)"),
        set_prior(class = "sigma", prior = "normal(1, 1)")
      )
    )
  } else {
    model <- update(model, newdata = sample)
  }

  # Get the posteriors of the model estimates
  draws <- as_draws_df(model)

  # Add sample information
  draws <- mutate(draws, step = i, n = n)

  # Add the draws to the results data frame
  results <- bind_rows(
    results,
    draws
  )
}

Now we have the draws of the posterior distribution of the model estimates. We can plot these using the following code.

Code

final_quantiles <- results %>%
  filter(n == 250) %>%
  pull(b_conditionexperimental) %>%
  quantile(probs = c(.025, .975))

ggplot(results, aes(x = factor(n), y = b_conditionexperimental)) +
  stat_halfeye() +
  geom_hline(yintercept = final_quantiles, linetype = "dashed", alpha = .5) +
  labs(x = "Sample size per condition (n)", y = "")

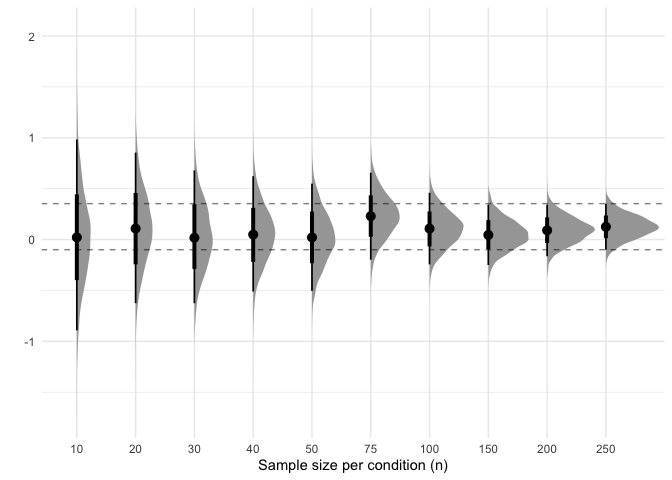

Horizontal lines show the 95% interval of the estimate from the largest sample.

Sequential analyses of 2 groups

Bayes factors

This is still a work in progress. I have yet to figure out the best way to obtain Bayes factors using the brms package.

Below I use both brms and BayesFactor to calculate Bayes factors for the effect of condition across various sample sizes.

Code

#|
#| cache: true
ns <- c(10, 20, 30, 40, 50, 75, 100, 150, 200, 250)
results <- tibble()

for (i in 1:length(ns)) {
  # Get the sample size
  n <- ns[i]

  # Draw a sample of size n
  sample <- slice_head(data, n = n)

  # If this is the first iteration, run the full brms model
  # Else update the model
  if (i == 1) {
    model <- brm(
      formula = DV ~ 0 + Intercept + condition,
      data = sample,
      family = gaussian(),
      prior = c(
        set_prior(coef = "Intercept", prior = "normal(0, 1)"),
        set_prior(class = "b", prior = "normal(0, 1)"),
        set_prior(class = "sigma", prior = "normal(1, 1)")
      ),
      sample_prior = TRUE
    )
  } else {
    model <- update(model, newdata = sample)
  }

  # Calculate the BF
  BF_brms <- hypothesis(model, "conditionexperimental = 0")

  # Also calculate the BF with the testBF() function from BayesFactor
  BF_BF <- ttestBF(formula = DV ~ condition, data = as.data.frame(sample))

  # Add the information to the bayes factors data frame
  results <- bind_rows(
    results,
    tibble(
      step = i,
      n = n,
      brms = BF_brms$hypothesis$Evid.Ratio,
      BayesFactor = extractBF(BF_BF)$bf
    )
  )
}

Next we plot the Bayes factors for each sample size and for each method of calculating the Bayes factor.

Code

results_long <- results %>%
  mutate(BayesFactor = 1 / BayesFactor) %>%
  pivot_longer(
    cols = c(brms, BayesFactor),
    names_to = "method",
    values_to = "BF"
  )

ggplot(
  data = results_long,
  mapping = aes(x = factor(n), y = BF, linetype = method, group = method)
) +
  geom_line() +
  labs(
    x = "Sample size per condition (n)",
    y = expression(BF["10"]),
    linetype = "Method"
  )

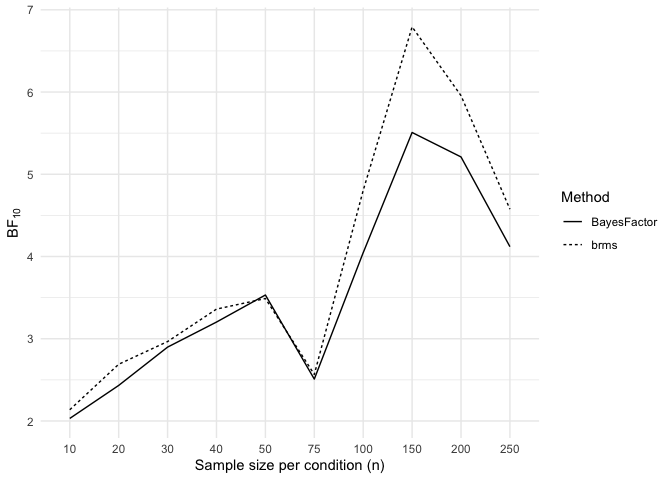

Bayes factors per sample size

Four groups

Let’s simulate data for a scenario in which we have 4 different between-subjects conditions. The conditions differ from each by a small amount and for simplicity’s sake each condition has a standard deviation of 1.

Code

# Set the simulation parameters
Ms <- c(0, 0.2, 0.4, 0.6)
SDs <- 1
n <- 250
labels <- c("A", "B", "C", "D")

# Produce the variance-covariance matrix
Sigma <- matrix(
  nrow = length(Ms),
  ncol = length(Ms),
  data = c(
    SDs^2, 0, 0, 0,
    0, SDs^2, 0, 0,
    0, 0, SDs^2, 0,
    0, 0, 0, SDs^2
  )
)

# Simulate
m <- mvrnorm(n = n, mu = Ms, Sigma = Sigma, empirical = TRUE)

# Prepare data
colnames(m) <- labels

data <- as_tibble(m)

data <- pivot_longer(
  data = data,
  cols = everything(),
  names_to = "condition",
  values_to = "DV"
)

data <- mutate(data, id = 1:n(), .before = condition)

Estimation

With this data we can run multiple sequential models (like in the 2 groups scenario), except this time we calculate contrasts between all the levels of the condition factor. We again obtain the posteriors of these contrasts and store them so we can plot them afterwards.

Code

ns <- c(10, 20, 30, 40, 50, 75, 100, 150, 200, 250)
results <- tibble()

for (i in 1:length(ns)) {
  # Get the sample size
  n <- ns[i]

  # Draw a sample of size n
  sample <- slice_head(data, n = n)

  # If this is the first iteration, run the full brms model
  # Else update the model
  if (i == 1) {
    model <- brm(
      formula = DV ~ 0 + Intercept + condition,
      data = sample,
      family = gaussian(),
      prior = c(
        set_prior(coef = "Intercept", prior = "normal(0, 1)"),
        set_prior(class = "b", prior = "normal(0, 1)"),
        set_prior(class = "sigma", prior = "normal(1, 1)")
      )
    )
  } else {
    model <- update(model, newdata = sample)
  }

  # Get the estimated marginal means
  emmeans <- emmeans(model, specs = pairwise ~ condition)
  contrasts <- emmeans$contrasts

  # Get draws of the posterior of each contrast
  draws <- gather_emmeans_draws(contrasts)

  # Add sample information
  draws <- mutate(draws, step = i, n = n)

  # Add the draws to the results data frame
  results <- bind_rows(
    results,
    draws
  )
}

Now that we have a data frame that contains the posterior draws of each contrast, we can plot the posteriors as well as some summary statistics (e.g., the median, a 95% interval) for each contrast.

Code

final_quantiles <- results %>%
  filter(n == 250) %>%
  group_by(contrast) %>%
  summarize(
    final_lower = quantile(.value, .025),
    final_upper = quantile(.value, .975)
  ) %>%
  pivot_longer(cols = -contrast, names_to = "bound", values_to = "value")

ggplot(results, aes(x = factor(n), y = .value)) +
  stat_slabinterval() +
  geom_hline(
    mapping = aes(yintercept = value),
    data = final_quantiles,
    linetype = "dashed",
    alpha = .5
  ) +
  facet_wrap(~contrast, ncol = 1, scales = "free_y") +
  labs(x = "Sample size per condition (n)", y = "Contrast estimate") +
  scale_color_viridis(option = "mako", discrete = TRUE)

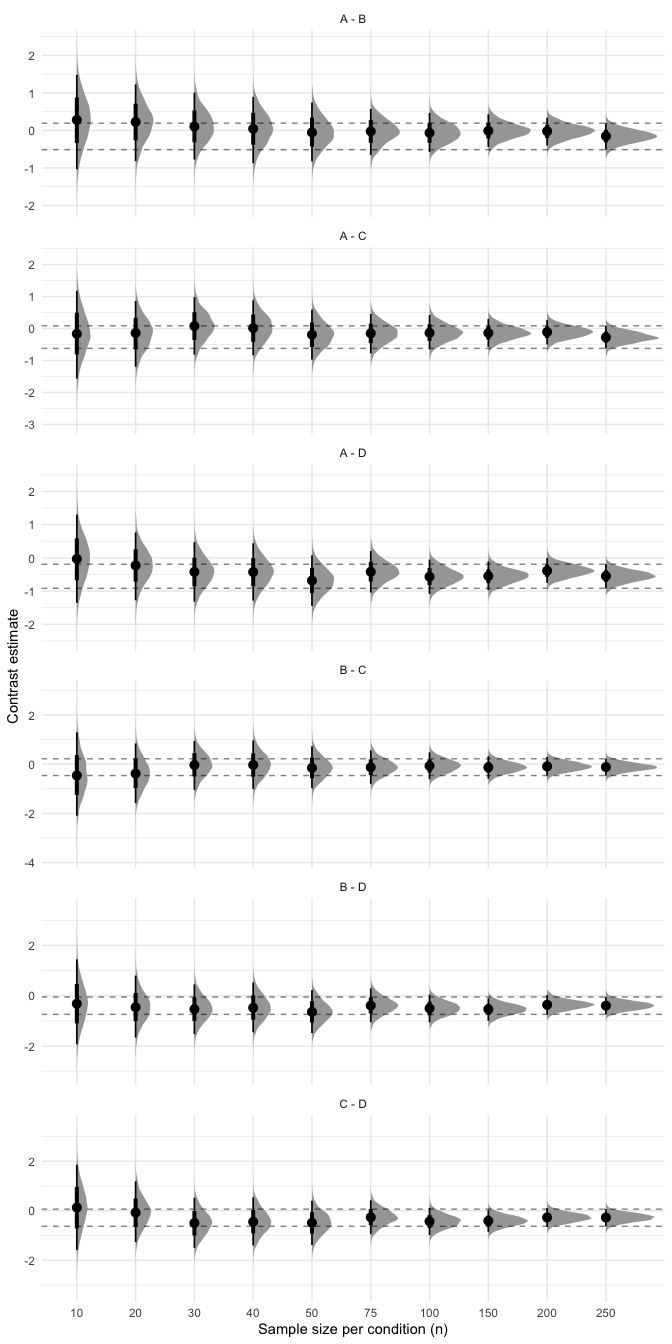

Horizontal lines show the 95% interval of the estimate from the largest sample.

Sequential analysis

Bayes factors

Below we run the same models but this time we calculate Bayes factors for each contrast using the hypothesis() function.

Code

ns <- c(10, 20, 30, 40, 50, 75, 100, 150, 200, 250)
results <- tibble()

for (i in 1:length(ns)) {
  # Get the sample size
  n <- ns[i]

  # Draw a sample of size n
  sample <- slice_head(data, n = n)

  # If this is the first iteration, run the full brms model
  # Else update the model
  if (i == 1) {
    model <- brm(
      formula = DV ~ 0 + Intercept + condition,
      data = sample,
      family = gaussian(),
      prior = c(
        set_prior(coef = "Intercept", prior = "normal(0, 1)"),
        set_prior(class = "b", prior = "normal(0, 1)"),
        set_prior(class = "sigma", prior = "normal(1, 1)")
      ),
      sample_prior = TRUE
    )
  } else {
    model <- update(model, newdata = sample)
  }

  # Get the bayes factors for each contrast
  BF_AB <- hypothesis(model, "Intercept = conditionB")
  BF_AC <- hypothesis(model, "Intercept = conditionC")
  BF_AD <- hypothesis(model, "Intercept = conditionD")
  BF_BC <- hypothesis(model, "conditionB = conditionC")
  BF_BD <- hypothesis(model, "conditionB = conditionD")
  BF_CD <- hypothesis(model, "conditionC = conditionD")

  # Create a tibble with the Bayes factors and sample information
  bayes_factors <- tibble(
    i = i,
    n = n,
    `A - B` = BF_AB$hypothesis$Evid.Ratio,
    `A - C` = BF_AC$hypothesis$Evid.Ratio,
    `A - D` = BF_AD$hypothesis$Evid.Ratio,
    `B - C` = BF_BC$hypothesis$Evid.Ratio,
    `B - D` = BF_BD$hypothesis$Evid.Ratio,
    `C - D` = BF_CD$hypothesis$Evid.Ratio
  )

  # Add the draws to the results data frame
  results <- bind_rows(
    results,
    bayes_factors
  )
}

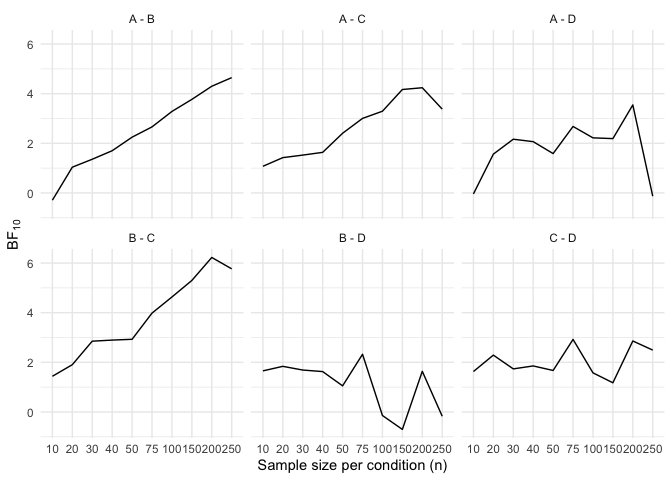

Next, we plot the Bayes factors over time, for each contrast.

Code

results_long <- results %>%
  pivot_longer(cols = -c(i, n), names_to = "contrast", values_to = "BF") %>%
  mutate(BF = if_else(BF < 1, log(BF), BF))

ggplot(data = results_long, mapping = aes(x = factor(n), y = BF, group = 1)) +
  geom_line() +
  facet_wrap(~contrast) +
  labs(
    x = "Sample size per condition (n)",
    y = expression(BF["10"]),
    linetype = "Method"
  )

Ignoring unknown labels:
• linetype : "Method"
